social sqncr

MFA Thesis @ Parsons / May, 2010

DownloadWebsite

Description

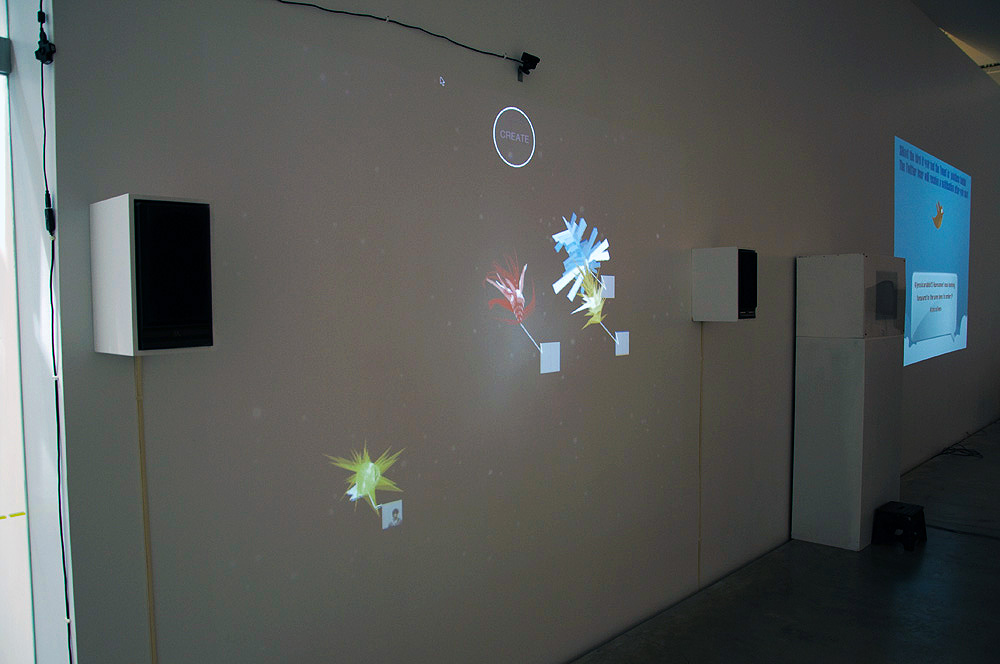

social sqncr is an interactive audio-visual installation that aims to make people more aware of the act of creating their public identity.

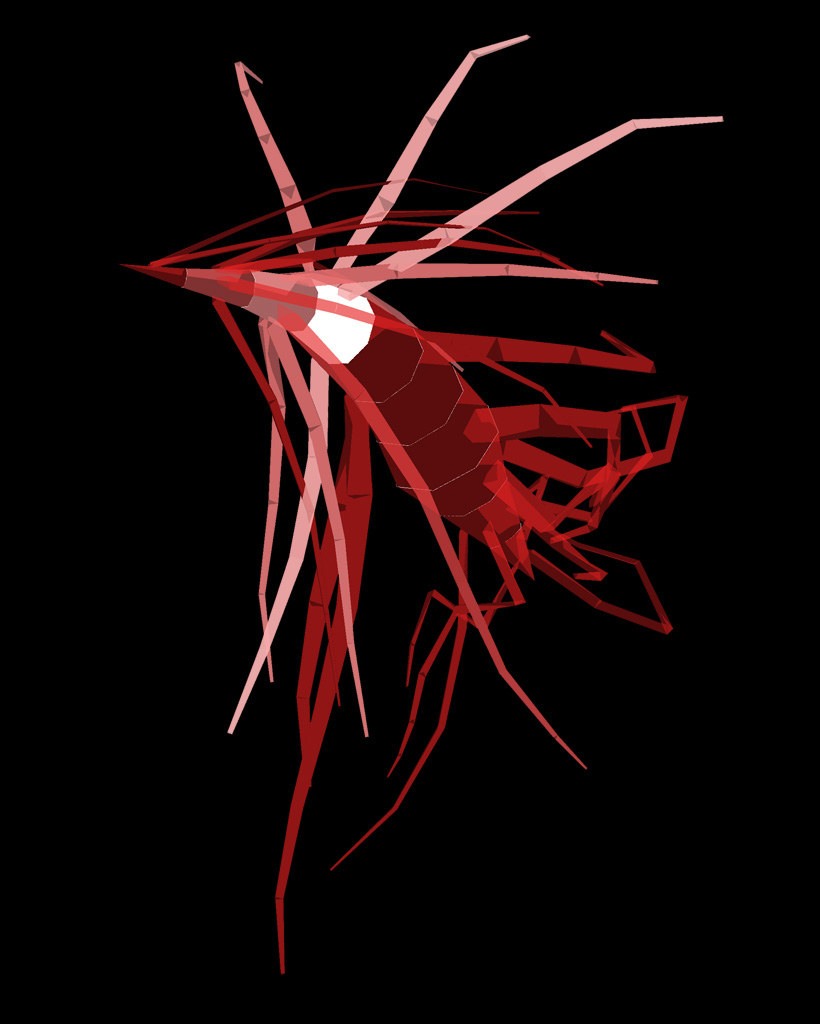

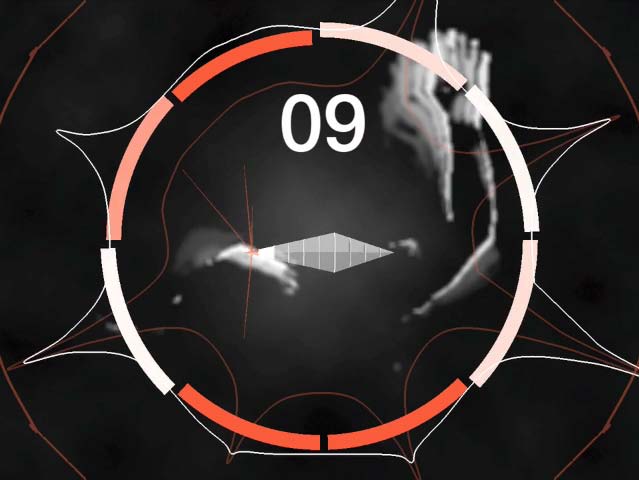

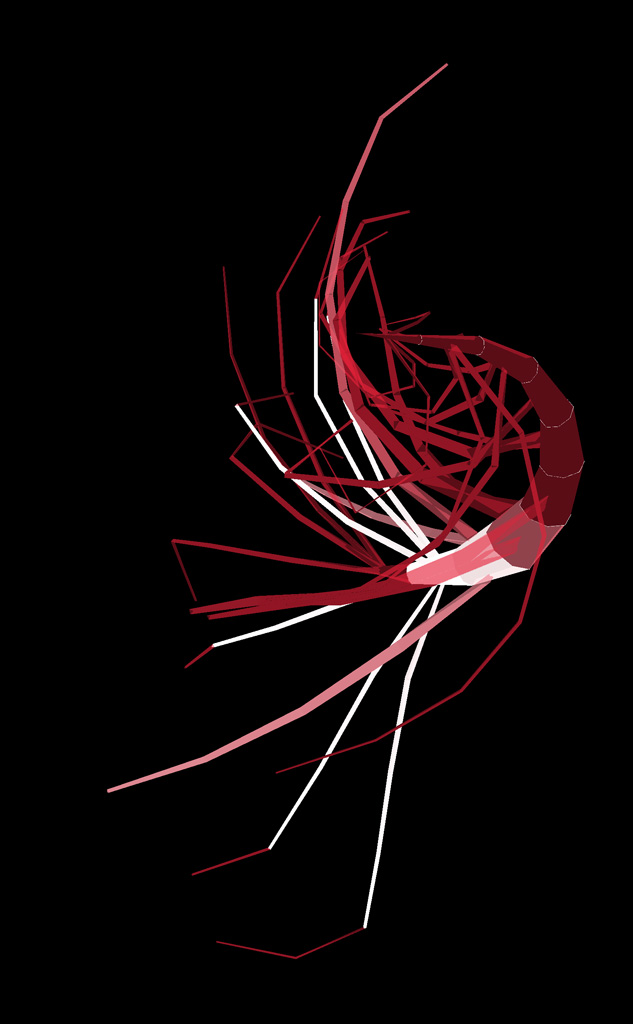

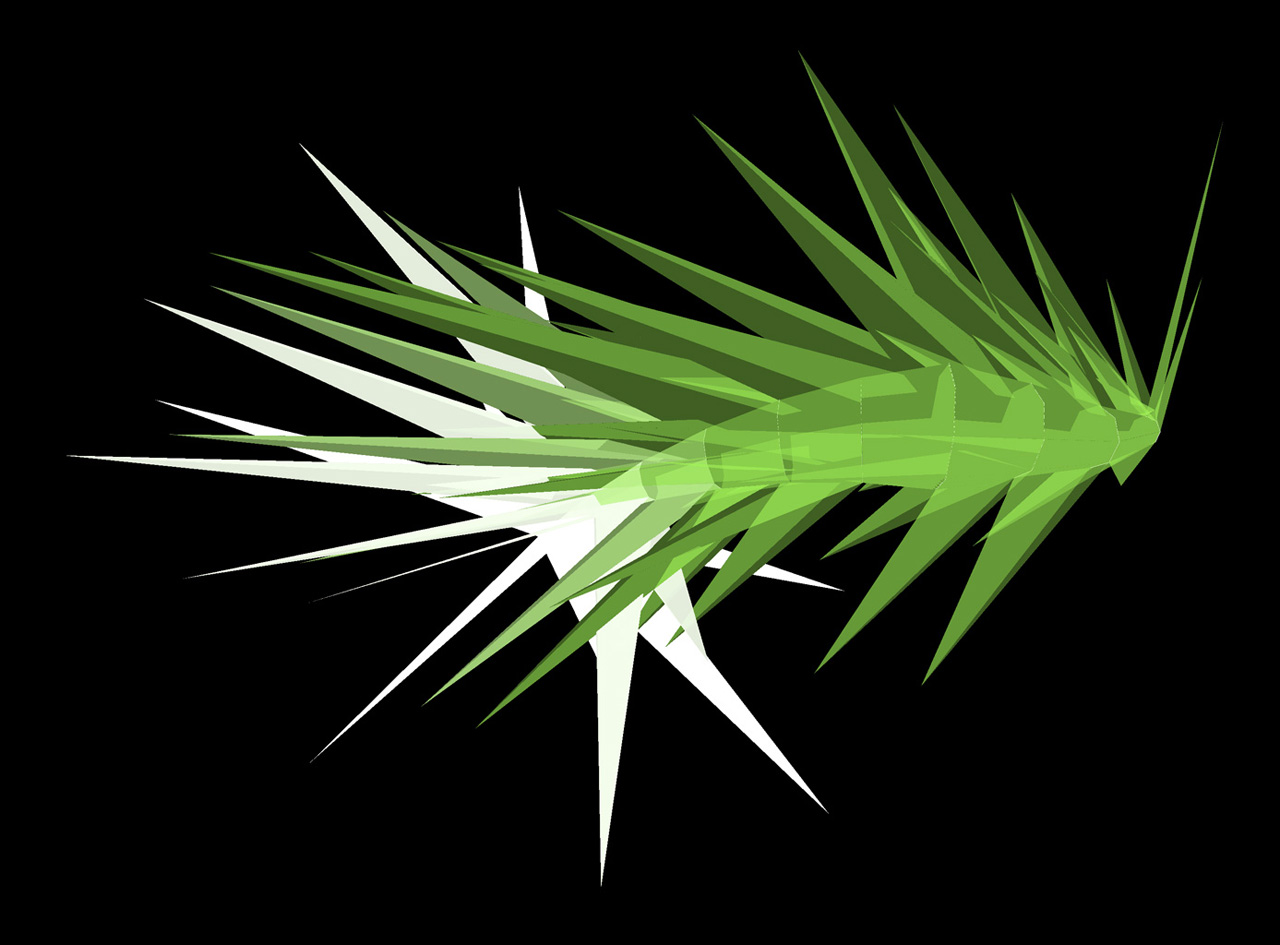

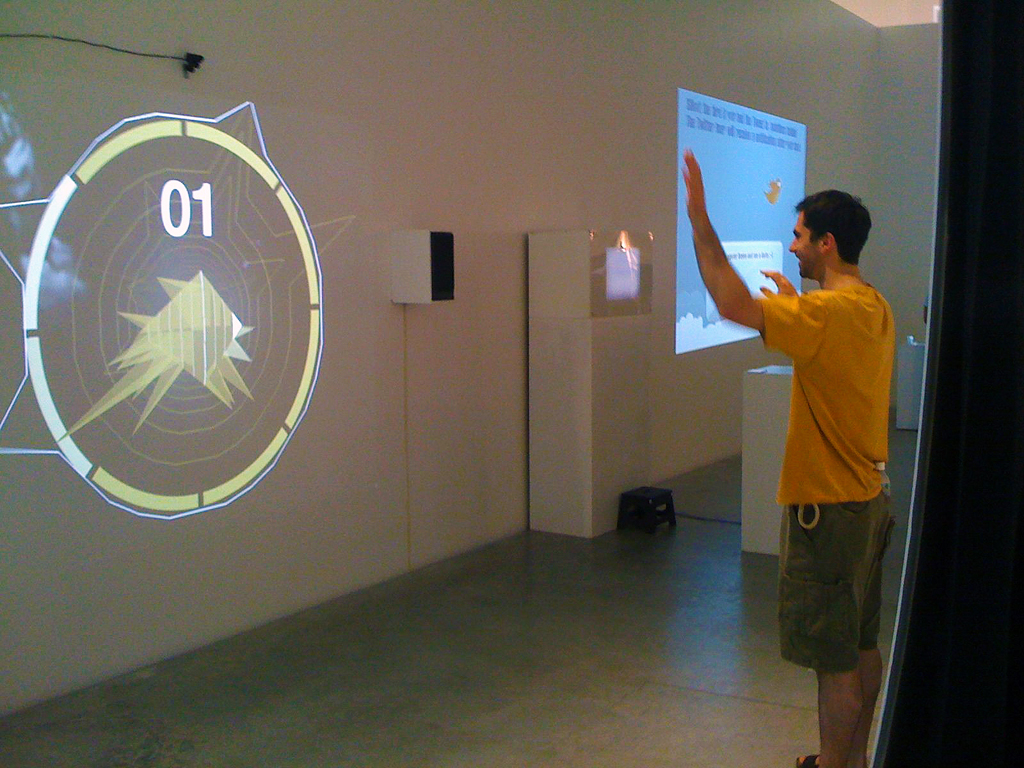

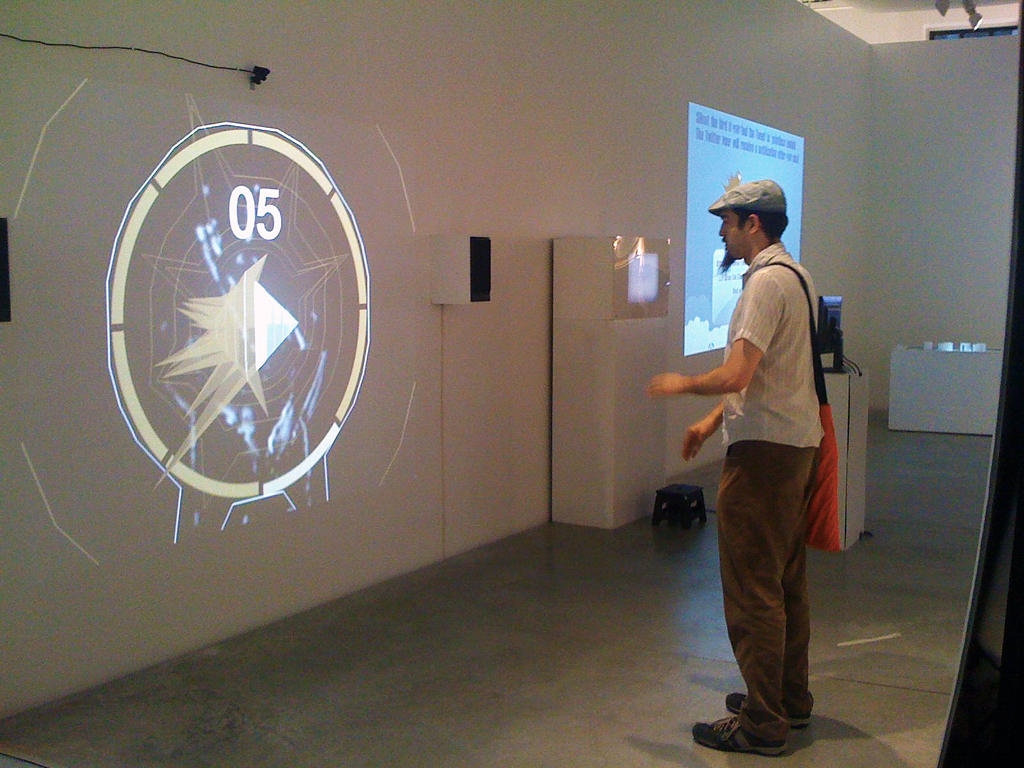

To create their ‘identity’, participants use their bodies to physically interact with a pseudo-musical instrument projected in a physical space to create virtual musical creatures based on their movements. The instrument consists of eight zones that participants interact with which influence the shape, movement, and aural properties of the resulting entity.

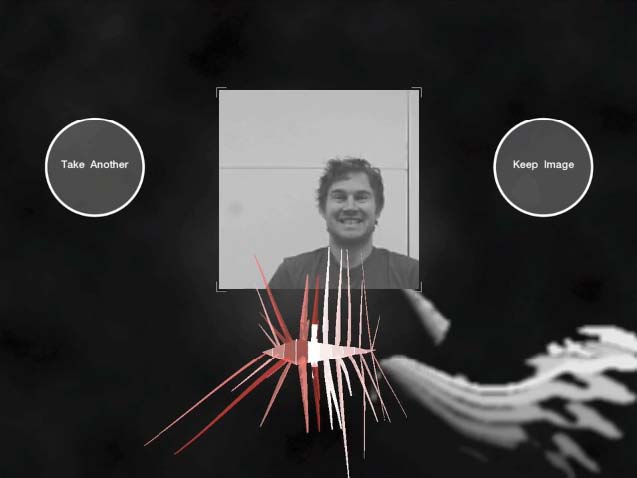

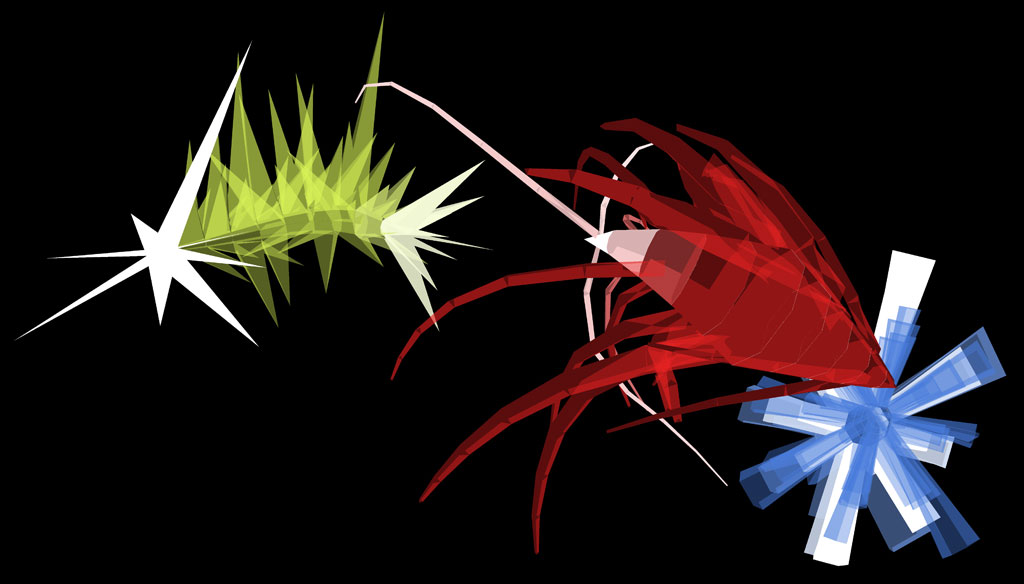

Once complete, the system captures an image of the participant to attach to the creature which is then set free into an eco-system inhabited by similar entities. The entities react to one another, much like human beings in a social network. Participants can cause environmental disturbances by physically interacting with the projection.

The physical movements required of participants ensures a high level of investment in the process, causing a heightened awareness of their creation, and thus themselves. Watching their entity interact with other entities is a reflection of their own interaction in their social networks.

Technical Detail

The visuals for this project were coded using openFrameworks, “an open source C++ toolkit for creative coding,” and openGL (Open Graphics Library). Some of the code for flocking, particle interaction, and openCV (Open Source Computer Vision) tracking is based code from Zachary Lieberman.

The audio is coded in SuperCollider, “a real time audio synthesis programming language”. Some of the code for effects, scales and synth definitions are based on examples on the site and the community.

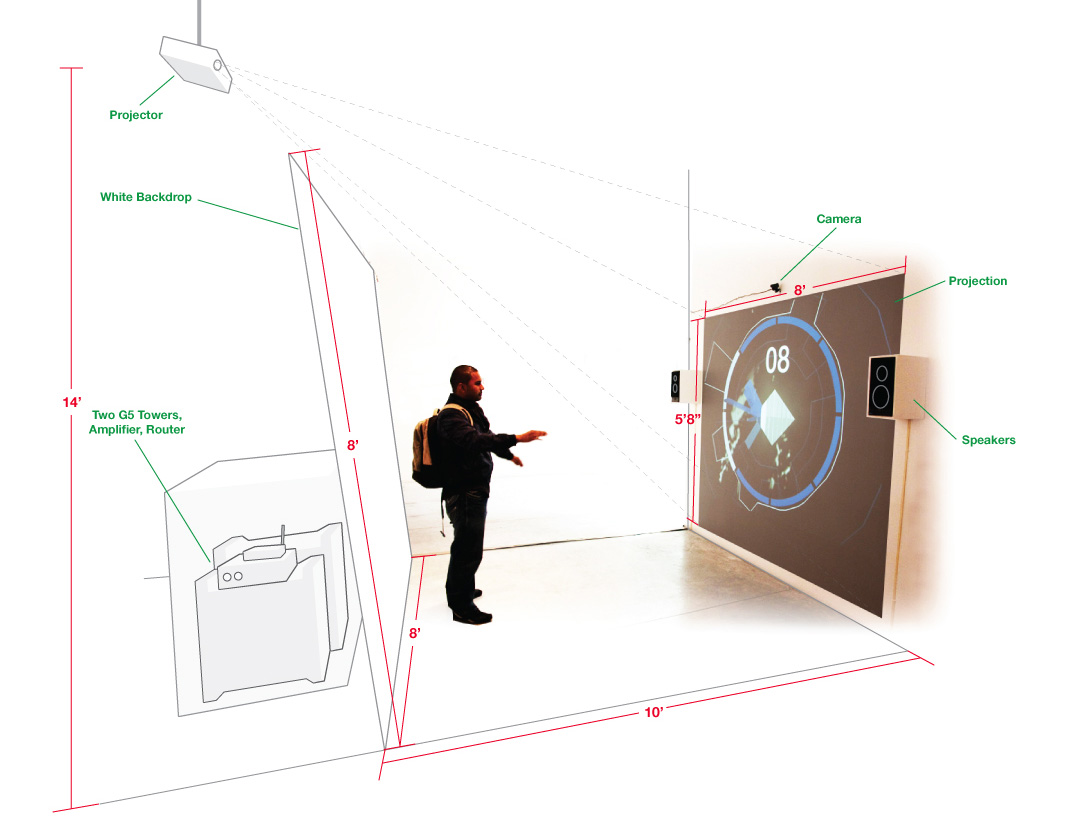

Two Macintosh Intel G5 towers were used power the installation. The two computers were hardwired to a closed network with static IP addresses for communication and debugging remotely. One computer ran the SuperCollider application and the other ran the openFrameworks application. OSC (Open Sound Control) is used to communicate between the two applications.

Credits

  • Nick Hardeman

Additional Documentation

  • Paper
  • Hires images
Share|

2 Responses to social sqncr

  1. Nano+Bio+Art | Home
    June 26, 2010 at 2:41 am

    [...] last presentation about the social sqncr was actually very interesting, but I didn’t understand it very much. I understood that it was [...]

    Reply
  2. Nano+Bio+Art | Home
    June 26, 2010 at 4:48 am

    [...] http://www.bruzed.com/2010/05/22/social-sqncr/ [...]

    Reply

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *


7 + = eleven

Videos

Photos

4571538685_7844459bfb_o
img_1350
synthetures_100421_005121
setup

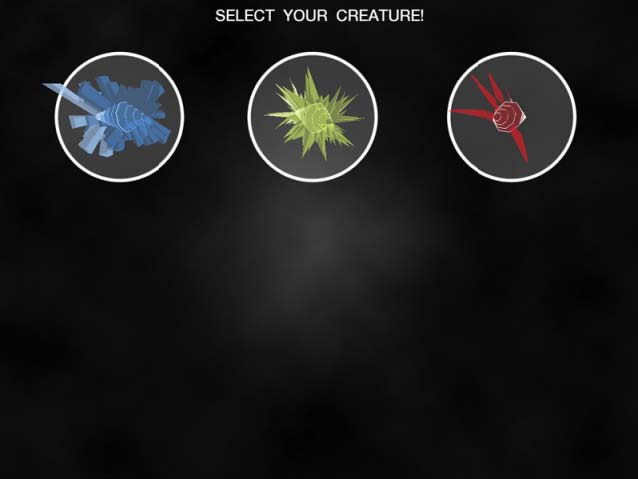

social_sqncr2
social_sqncr4
social_sqncr5
img_1358
synthetures_100421_010002

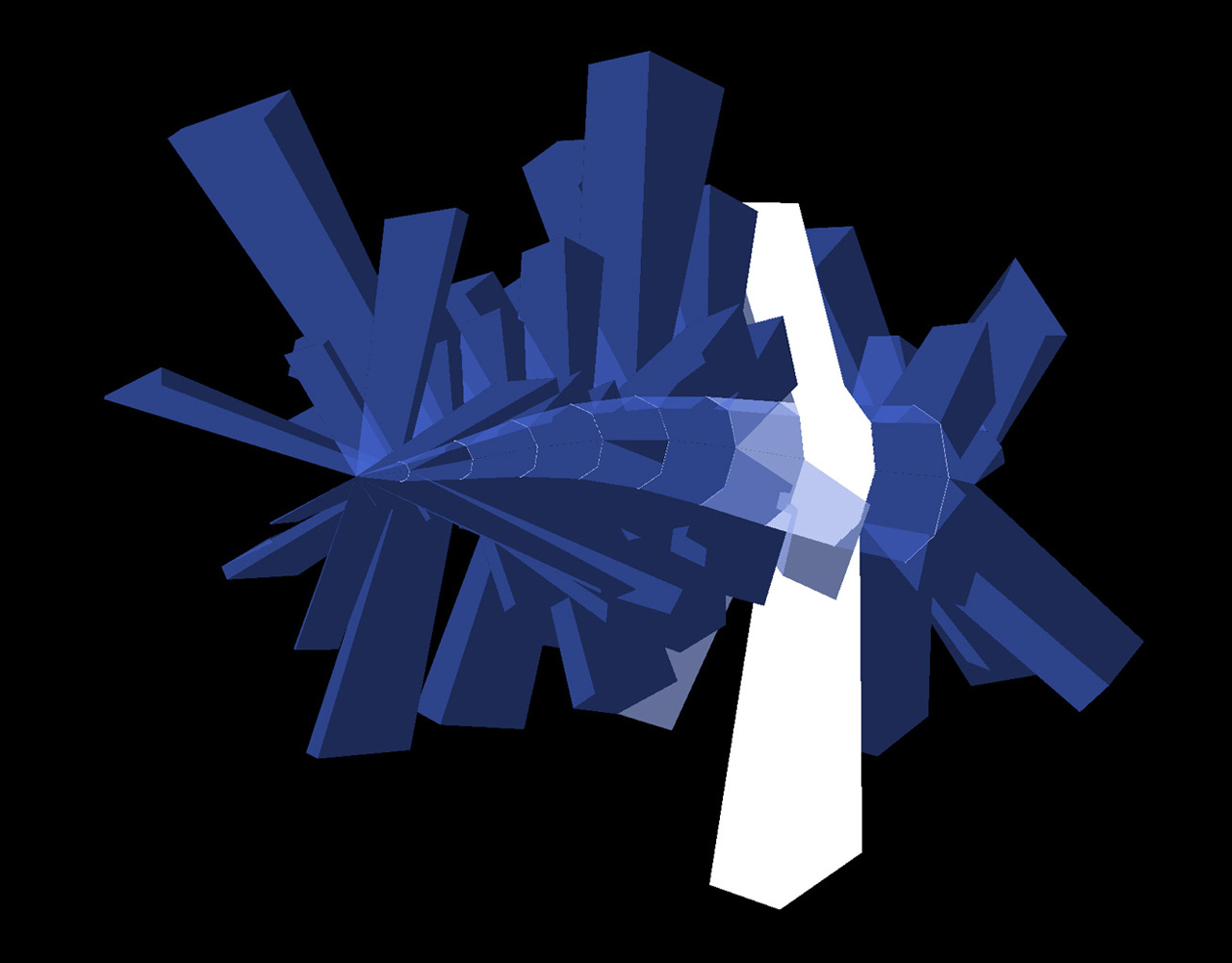

synthetures_100421_010945
